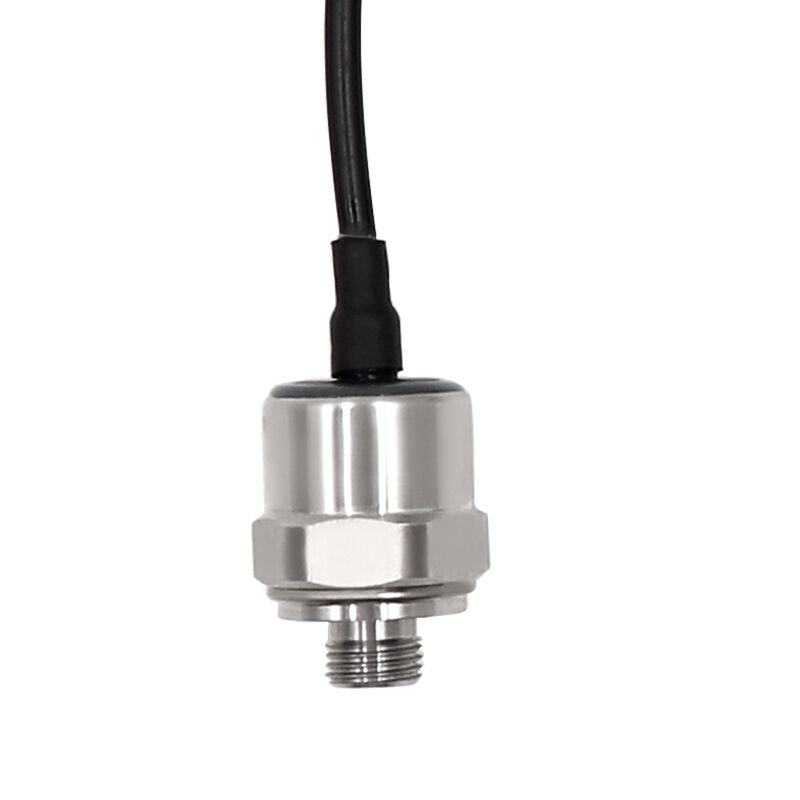

Name: 5bar-40bar 316 Pressure Sensor Transmitter 0.5~4.5V Output for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125P
Availability: InStock

Huis > producten > iot druksensor >

5bar-40bar 316 Pressure Sensor Transmitter 0.5~4.5V Output for Coffee Machine

316 stainless steel pressure sensor

coffee machine pressure transmitter

5-40bar IOT pressure sensor

Plaats van herkomst:

Chiaan

Merknaam:

WNK

Modelnummer:

WNK125P

Neem contact met ons op

Vraag een offerte

Productgegevens

Opslagtemperatuur:

-50 ℃ ~ 135c

Meadium:

Motorolie, Poe -olie, koelmiddel, gas, water of vloeistof

Nauwkeurigheid:

+1%FS (lineariteit, hysterese, herhaalbaarheid, kalibratie)

Elektrische connector:

Packard/ kabeluitlaat

Drukbereik:

0 ~ 5Bar, 0 ~ 10Bar, 0 ~ 20Bar, 0 ~ 40Bar, (Cutomized)

Uitvoer:

0,5V ~ 4,5 V DC, (10%-90%VCC)

Procesverbinding:

G1/ 4, 7/16-unffemale, (cusomized)

Materiaal:

Huisvesting 304 SST; Bevochtigde delen 316L

Markeren:

316 stainless steel pressure sensor

coffee machine pressure transmitter

5-40bar IOT pressure sensor

Betalings- en verzendvoorwaarden

Gerelateerde producten

Video

5bar-40bar 316 Pressure Sensor Transmitter 0.5~4.5V Output for Coffee Machine

Vind de beste prijs

Video

WNK81MA 4-20mA 0.5-4.5V Diffuus Silicium Druksensor voor Lucht Olie Gas

Vind de beste prijs

Video

WNK 0.5-4.5V G1/4 Koffiemachine Druksensor Zender

Vind de beste prijs

Video

Voedingsmiddelenklasse 316 Druksensor Transmitter 5V Uitgang NPT1/4 voor koffiemachine

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

WNK 0.5-4.5V 0-40Bar Pressure Sensor for Coffee Machine

Product Description

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Model	WNK125P
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
Material	Housing 304 SST; wetted parts 316L
