Name: ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 42.00 USD
Availability: InStock

Huis > producten > Waterspiegelzender >

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Plaats van herkomst:

Anhui, China

Merknaam:

WNK

Modelnummer:

WNK8010-TT

Neem contact met ons op

Vraag een offerte

Productgegevens

Garantie:

1 jaar

Aangepaste ondersteuning:

OEM, ODM

Drukbereik::

0...2~200 meter

Uitvoer:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Nauwkeurigheid:

00,2% FS, 0,5% FS,

Stroomvoorziening:

12~36VDC

Beschermingsklasse:

IP68

Toepassing:

Regenwater, drinkwater, afvalwater, rioolwater, zeewater

Woningmateriaal:

304SS, 316L

Bedrijfstemperatuur::

-40~85 ℃

Type:

Graadmeter

OEM -service:

OEM, ODM, beschikbare aanpassing

Haven:

SHANGHAI/NINGBO

Markeren:

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Betalings- en verzendvoorwaarden

Min. bestelaantal

1 stks

Prijs

$35.00 - $50.00/Pieces

Verpakking Details

Elke set in één individuele doos, beschermd met schuim. Vervolgens in een omdoos.

Levertijd

5-8 werkdagen

Betalingscondities

T/T, Western Union, MoneyGram, PayPal

Levering vermogen

2000 stuks/stuk per maand

Gerelateerde producten

Video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Vind de beste prijs

Video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Vind de beste prijs

Video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Vind de beste prijs

Video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

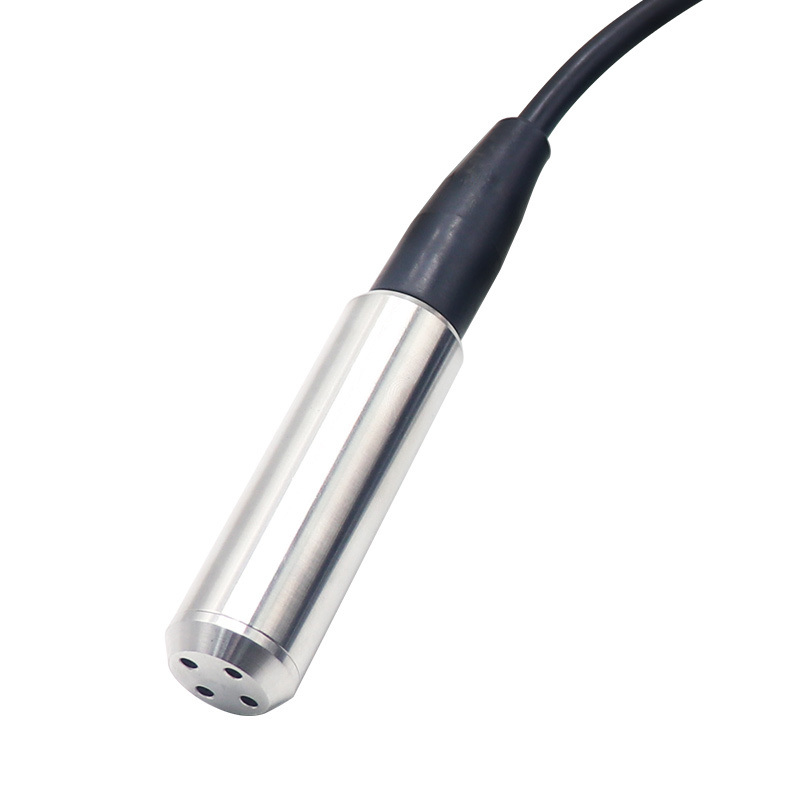

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68
