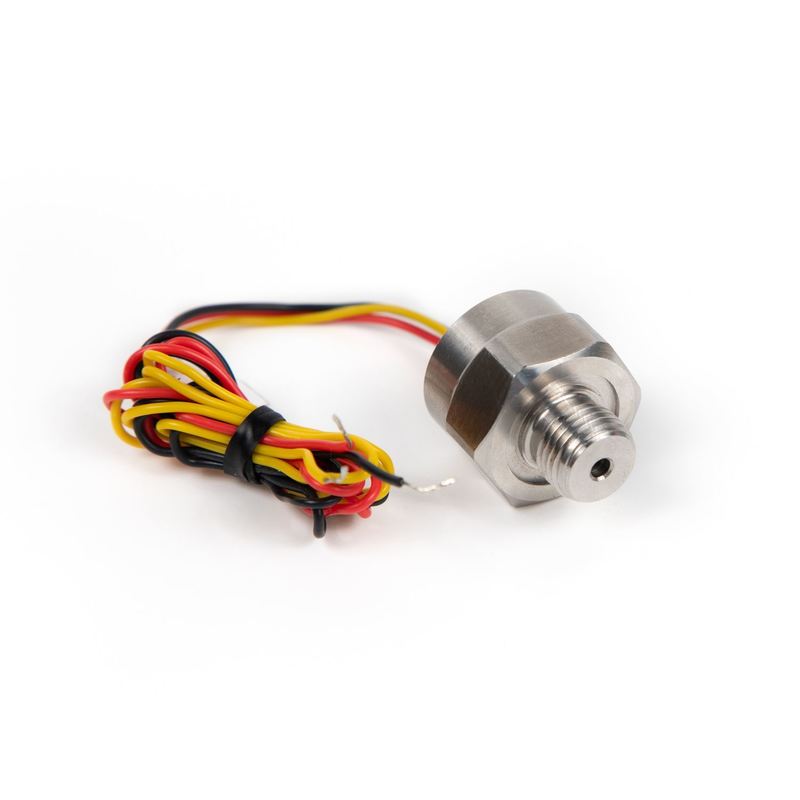

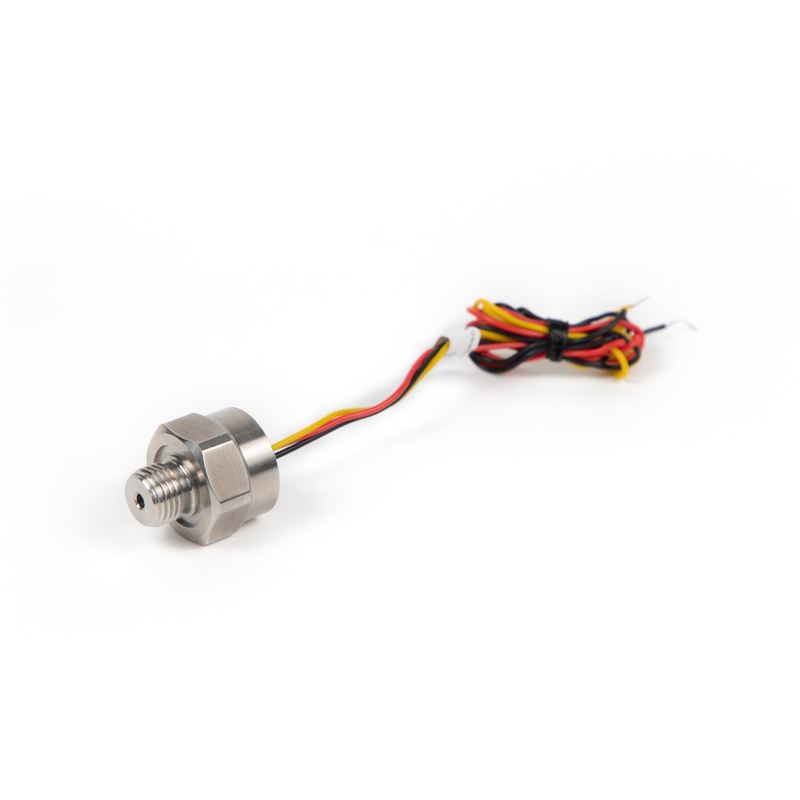

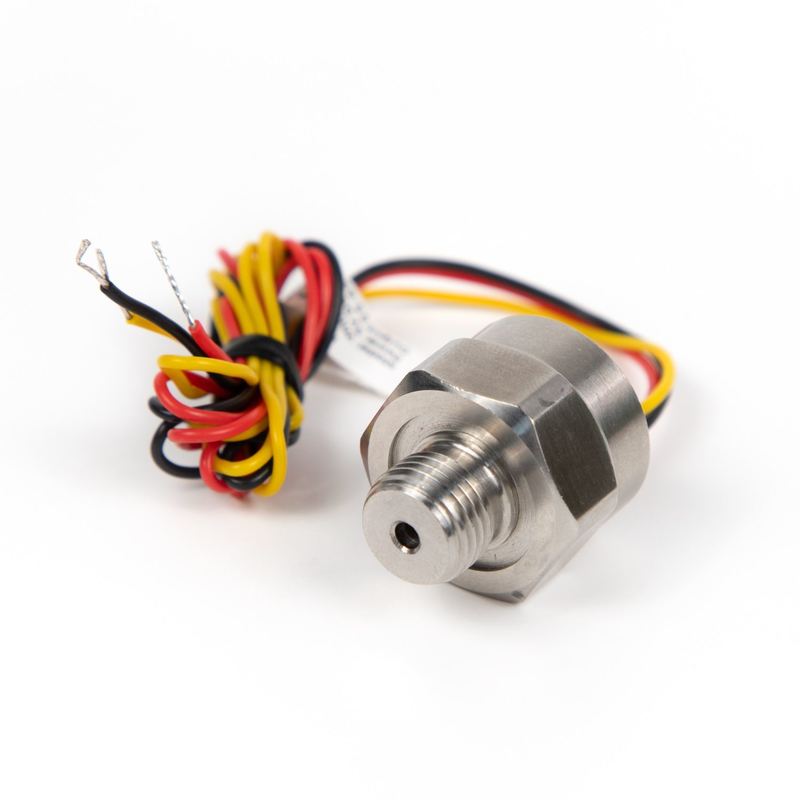

Name: WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK811
Availability: InStock

Huis > producten > Miniatuurdruksensoren >

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Plaats van herkomst:

China

Merknaam:

WNK

Model Number:

WNK811

Neem contact met ons op

Vraag een offerte

WNK811 Small Size Ceramic Capacitive Pressure Sensor for Water Air Gas

Productgegevens

Nauwkeurigheid:

1%FS

Measured media:

Liquid, gas and steam

Drukbereik:

0 ~ 150Bar

Uitgangssignaal:

4 tot en met 20 mA

Stroomvoorziening:

24V

Omgevingstemperatuur:

-40 tot 110°C

Procesverbinding:

G1/4M

Elektrische connectie:

Draad

Materiaal:

Roestvrij staal

Markeren:

small ceramic capacitive pressure sensor

miniature pressure sensor for water air gas

capacitive pressure sensor with warranty

Betalings- en verzendvoorwaarden

Min. bestelaantal

1 stks

Prijs

negotiable

Verpakking Details

Neutrale kartonnen verpakking of zoals u wenst.

Levertijd

5-8 werkdagen

Betalingscondities

T/T, Western Union, MoneyGram, PayPal

Levering vermogen

5000/ stuk/maand

Gerelateerde producten

Video

Ceramische de Druksensor van 0.5-4.5v 4-20ma I2C voor het Slimme Brand Controleren

Vind de beste prijs

Video

304 roestvrij staal 4 - de Drukzender van 20mA 0.5-4.5V voor Hvac

Vind de beste prijs

Video

4-20mA Ceramische Capacitieve Druksensor voor de Compressor van de Luchtvoorwaarde

Vind de beste prijs

Video

4-20mA de Druksensor van de Lage Kostenolie voor Auto

Vind de beste prijs

Neem contact met ons op

86-551-65369655

Contact opnemen

Productbeschrijving

Product Description

Applicable media	Liquid, Gas
Pressure Range	10bar (bar and psi unit available)
Pressure measurment	Gauge Pressure
Output	I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	3.3VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	G1/4
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.

Application
WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and
etc

Dimensions
