Plaats van herkomst:
Chian
Merknaam:
WNK
Certificering:
CE/ROHS
Modelnummer:
WNK80ma
Video
| Attribute | Value |
|---|---|
| Measured media | Water, Air, Gas, Steam |
| Housing material | 304SS, 316SS |
| Accuracy | 0.5%FS |
| Pressure range | 10kpa, -100kpa...70Mpa |
| Applications | Water Air Refrigerant HVAC, Automobile |
| Output signal | 4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485 |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
| IP rating | IP65 |
WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it is widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and more. Certified with UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.
| Applicable media | Liquid, Gas |
| Pressure Range | 0-60bar/-1-700Bar |
| Pressure Type | Gauge Pressure, Absolute pressure, Sealing pressure |
| Output | 4-20mA/0.5-4.5V/1-5V/0-10V/I2C |
| Accuracy(linearity,Hysteresis and Repeatability) | 0.5%F.S./1%FS (Typical) |
| Power Supply | 24VDC/12VDC/5VDC/3.3V |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |

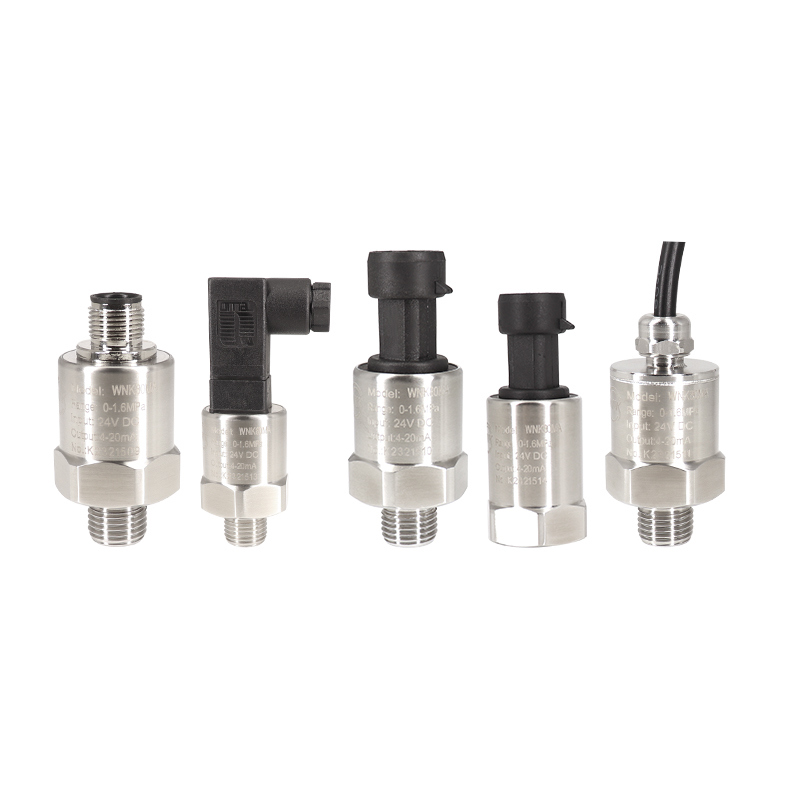

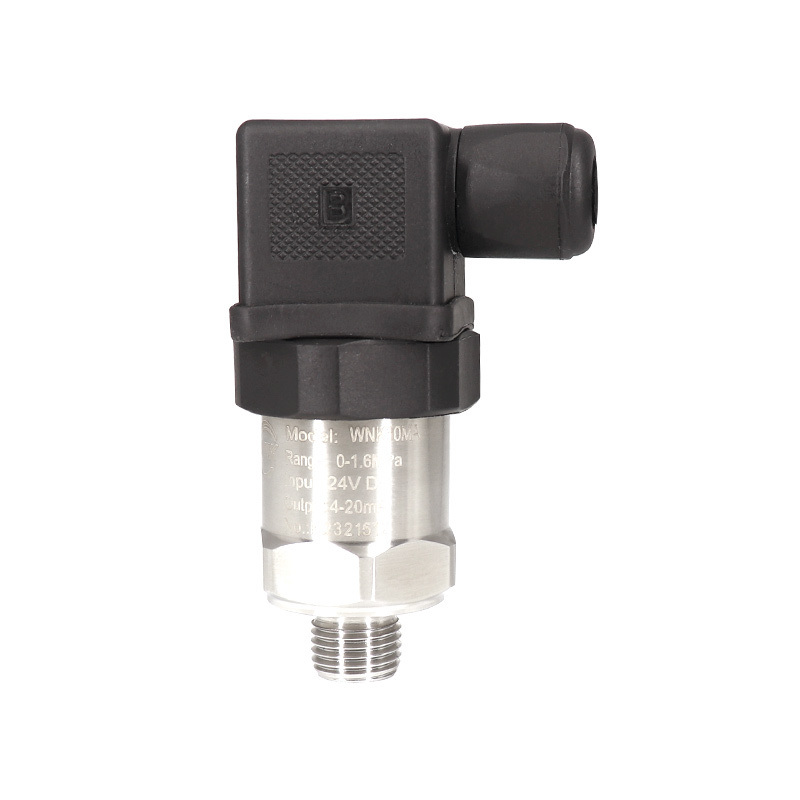

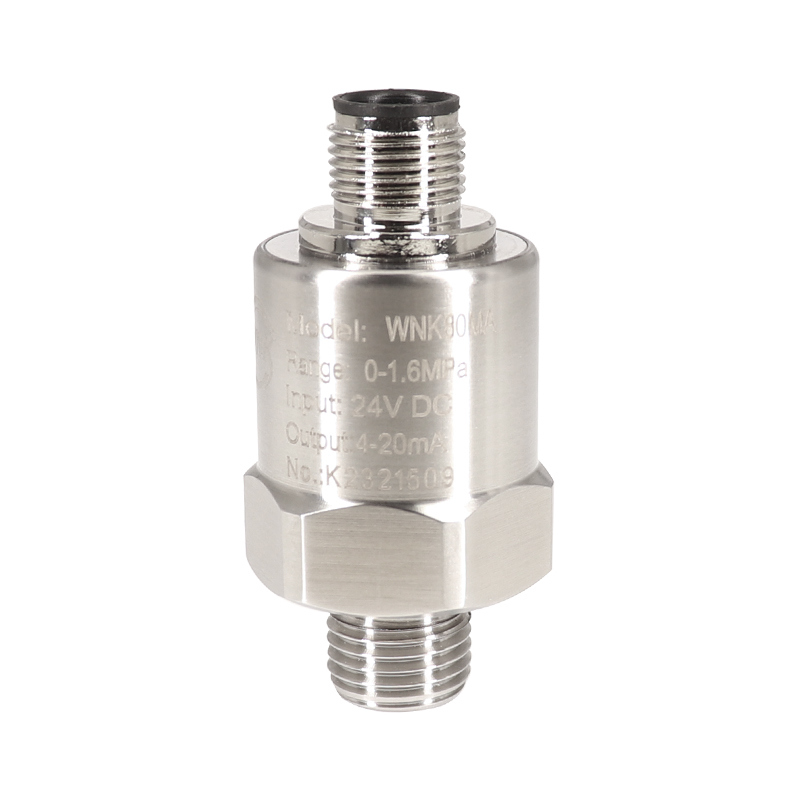

| Electrical connection | Parkard, M12, DIN43650, Cable outlet |
| Mechanical connection | G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize |
| Housing material | 304 stainless steel (inner core is 316 stainless steel) |
| Protection | IP65 |
